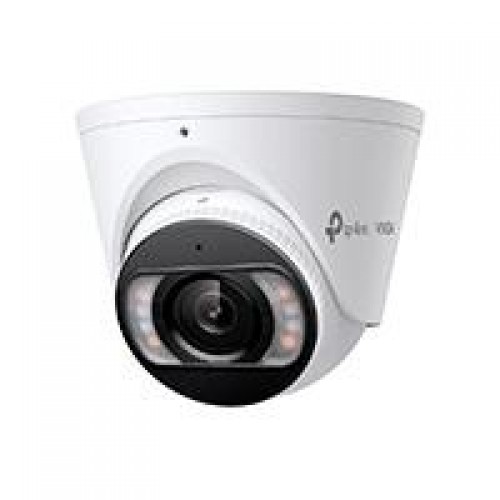

Vigi c455.

Cámara ip vigi tipo turret full color vigi de 5Mp.

5Mp de súper alta definición y 24 horas a todo color.

Análisis de personas y vehículos.

Clasificación de personas y vehículos.

Detección inteligente.

Tecnología de mejora de vídeo inteligente.

Defensa activa y audio bidireccional.

Estanqueidad ip67.

Tecnología de compresión h.265+.

Camara.

Sensor de imagen.

1/2.7” progressive scan cmos.

Velocidad del obturador.

1/3 to 1/10000 s.

Obturador lento.

Yes.

Iluminación mínima.

0.005 lux.

0 lux with ir/White light.

Mecanismo día/Noche.

Ir cut filter.

Switch día/Noche.

Unified/ scheduled/ auto.

lens.

Type.

Fixed focal lens.

Focal length.

2.8/4 mm.

Aperture.

F1.6.

Fov.

• 2.8 mm:.

Horizontal fov: 111.4°, vertical fov: 58.8°, diagonal fov: 134°.

• 4 mm:.

Horizontal fov: 88°, vertical fov: 46°, diagonal fov: 105.4°.

Lens mount.

M12*P 0.5.

Dori distance.

• 2.8 mm.

Detect: 64 m (210 ft).

Observe: 27 m (89 ft).

Recognize: 13 m (43 ft).

Identify: 6 m (20 ft).

• 4 mm.

Detect: 80 m (262 ft).

Observe: 33 m (108 ft).

Recognize: 16 m (52 ft).

Identify: 8 m (26 ft).

angle adjustment (Manual).

Range.

Pan: 0° to 360°, tilt: 0° to 85°, rotation: 0° to 360°.

illuminator.

Ir led.

• quantity: 4.

• range: 30M.

• wavelength: 850Nm.

White led.

• quantity: 4.

• range: 30M.

Illuminator on/Off control.

Auto/Scheduled/Always on/Always off.

video.

Max.

Resolution.

2880 x 1620.

Main stream.

• frame rate and #65306;.

50Hz: 1Fps, 5Fps, 10Fps, 15Fps, 20Fps, 25Fps.

60Hz: 1Fps, 5Fps, 10Fps, 15Fps, 20Fps, 25Fps, 30Fps.

• resolution:.

2880X1620,2688X1520, 2304X1296, 2048X1280, 1920X1080.

1280X720.

• note:.

If the image rotation is set to 90° or 270°, the frame rate only supports up to 20Fps.

sub-Stream.

• frame rate and #65306;.

50Hz: 1Fps, 5Fps, 10Fps, 15Fps, 20Fps, 25Fps.

60Hz: 1Fps, 5Fps, 10Fps, 15Fps, 20Fps, 25Fps, 30Fps.

• resolution:.

704X576,640X480, 352X288, 320X240.

• note:.

If the image rotation is set to 90° or 270°, the frame rate only supports up to 20Fps.

bit rate control.

Cbr, vbr.

Compresión de video.

• main stream: h.265+/H.265/H.264+/H.264.

• sub-Stream: h.265/H.264.

H.264 type.

High profile.

H.264+.

Main stream supported.

H.265 type.

Main profile*.

H.265+.

Main stream supported*.

Video bit rate.

• main stream: 256 kbps to 6 mbps.

• sub-Stream: 64 kbps to 512 kbps.

image.

Image settings.

• mirror.

• brightness.

• contrast.

• saturation.

• sharpness.

• exposure.

• wdr.

• white balance.

• prevent overexposure to infrared light.

• hlc adjustable by client software.

Image enhancement.

Blc/3D dnr/Hlc/Smartir.

Wide dynamic range.

120 db.

note: when people and vehicle analytics is enabled, only dwdr is supported.

snr.

and #8805.

52 db.

Image parameters switch.

Yes.

Privacy mask.

Up to 4 masks.

Roi.

1 region.

Osd setting.

Yes.

audio.

Comunicación de audio.

Two-Way audio.

Audio input.

Yes.

Audio output.

Yes.

Audio compression.

Yes.

Audio sampling rate.

8Khz.

Environment noise filtering.

Yes.

Audio bit rate.

64 kbps(G.711 alaw).

network.

Protocolo.

Tcp/Ip, udp, icmp, http, https, dhcp, dns, rtsp, ntp, upnp udp, ssl/Tls.

Onvif.

Yes.

Api.

Open network video interface (Profile s).

Simultaneous live view.

3 main streams and 3 sub-Streams.

Client.

Vigi app, vigi security manager, web ui, vigi vms.

Web browser.

• google chrome® 57 and above.

• firefox® 52 and above.

• safari® 11 and above.

• microsoft® edge 91 and above.

Cloud.

Yes.

Seguridad.

Password protection, https encryption, ip address filter, digest authentication.

alarma y gestión de eventos.

Smart event.

• human and vehicle classification.

• intrusion detection.

• line-Crossing detection.

• region entering detection.

• region exiting detection.

• object abandoned detection.

• object removal detection.

• loitering detection.

• smart frame.

• people detection.

• vehicle detection.

Basic event.

• motion detection.

• video tampering detection.

• exception ( illegal login).

• scene change detection.

Alarm linkage.

• memory card video recording.

• message push.

• audible warning.

• white light flashing.

Linkage method.

N/A.

Output notification.

Message push.

deep learning function.

People and vehicle analytics.

Search and filter to people or vehicle of interest based on many different attributes, making post-Event search faster and easier.

interfaces.

Network interface.

1 rj45 10/100M self-Adaptive ethernet port, poe.

Alarm.

N/A.

Reset button.

Yes.

Power.

Dc power port.

On-Board storage.

Built-In memory card slot, support microsd card, up to 256 gb**.

Built-In microphone.

Yes.

Records anything going on within a 15-Ft radius of the camera.

Built-In speaker.

Yes.

Audio.

N/A.

general.

Temperatura de funcionamiento.

-30–60 °C.

Storage temperature.

-40–60 °C.

Humedad de funcionamiento.

95% or less (Non-Condensing).

Storage humidity.

95% or less (Non-Condensing).

Contenidos del paquete.

• vigi network camera.

• quick start guide.

• waterproof cable attachments.

• mounting accessories.

Material.

Metal.

Net weight.

0.48 kg.

Power supply.

• 12V dc ± 5%, max.

11 w, 5.5 mm coaxial power plug.

• poe: 802.3Af/At, class 0, max.

12 w.

Protection.

Ip67.

Product dimensions (L x w x h).

111 × 111 × 83.7 mm.

Certificaciones.

Ce, ntra, vcci, kc, bsmi, fcc, ic

GARANTÍA: 3 AÑOS
