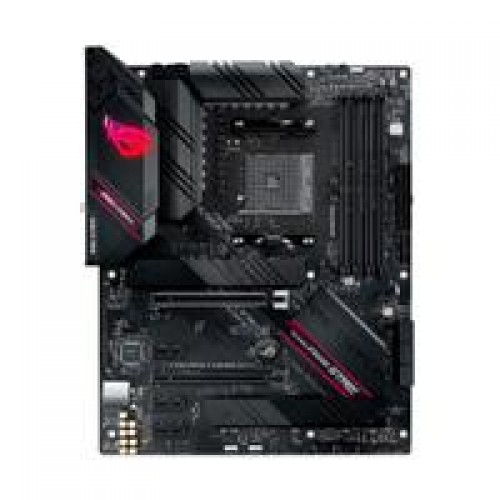

Rog strix b550-F gaming wifi ii.
Placa base gaming atx amd b550 con pcie® 4.0, 12+2 etapas de potencia, intel® 2.5 gb ethernet, wifi 6E, cancelación de ruido bidireccional con ia, dos m.2 con disipadores, sata 6 gbps, usb 3.2 gen.
2 e iluminación aura sync rgb.
Zócalo am4 amd: compatible con las series de procesadores de sobremesa amd ryzen 3000, 5000, 5000 g y 4000 g.
la mejor conectividad gaming: pcie® 4.0, dos ranuras m.2, usb 3.2 gen.
2 de tipo c®, hdmi® 2.1 y displayport 1.2.
redes rápidas: wifi 6E (802.11Ax) e intel® 2.5 gb ethernet con asus languard.
diseño de alimentación potente: 12+2 etapas de potencia con tomas procool, chokes de aleación y condensadores de alta calidad.
software de calidad: las intuitivas interfaces de uefi bios y las redes con ia de asus facilitan la configuración.
dyi fácil: cajetín de e/S montado en fábrica, bios flashback, q-Led y safeslot.
personalización inigualable: iluminación rgb aura sync exclusiva de asus, conector aura rgb y rgb direccionable.
el sonido líder de la industria gaming: cancelación de ruido asistida por ia, códec supremefx s1220A, dts® sound unbound y sonic studio iii para una experiencia envolvente.
Cpu.
Amd ryzen 5000 series/ 5000 g-Series/ 4000 g-Series/ 3000 series desktop processors.
*Refer to www.Asus.Com for the amd® cpu support list.
chipset.
B550.
memoria.
Canales de memoria:.
4Ddr4 (Dual channel).
tamaño de memoria máximo:.
128Gb.
amd ryzen 5000 and 3000 series desktop processors.
4 x dimm, max.
128Gb, ddr4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 mhz, un-Buffered memory *.
Amd ryzen 5000 and 4000 g-Series processors.
4 x dimm, max.
128Gb, ddr4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 mhz, un-Buffered memory *.
Ecc memory (Ecc mode) support varies by cpu.
*Refer to www.Asus.Com for the memory qvl (Qualified vendors lists).
gráficos.
1 x displayport 1.2.
1 x hdmi® 2.1.
*Graphics specifications may vary between cpu types.
ranuras de expansión.
Amd ryzen 5000 and 3000 series/ 5000 and 4000 g-Series desktop processors.
1 x pcie 4.0 x16 safeslot (Supports x16 mode).
Amd b550 chipset.
1 x pcie 3.0 x16 slot (Supports x4 mode)*.
3 x pcie 3.0 x1 slots.
*Share bandwidth with pcie3.0 x1_1, pcie3.0 x1_2, pcie3.0 x1_3.
almacenamiento.
Supports 2 x m.2 slots and 6 x sata 6Gb/S ports.
Total supports 2 x m.2 slots and 6 x sata 6Gb/S ports.
Amd ryzen 5000 and 3000 series/ 5000 and 4000 g-Series desktop processors.
M.2_1 slot (Key m), type 2242/2260/2280/22110 (Supports pcie 4.0 x4 and sata modes).
amd b550 chipset:.
M.2_2 slot (Key m), type 2242/2260/2280/22110 (Supports pcie 3.0 x4 and sata modes)*.
6 x sata 6Gb/S ports.
support raid 0, 1, 10.
*When the m.2_2 slot is populated, sata6G_5/6 ports will be disabled.
ethernet.
1 x intel® 2.5Gb ethernet.
1 x intel® i225-V 2.5Gb ethernet.
asus languard.
wireless and bluetooth.
Wi-Fi 6E.
2X2 wi-Fi 6E (802.11 a/B/G/N/Ac/Ax).
supports 2.4/5/6Ghz frequency band*.
bluetooth v5.2.
*Wifi 6E 6Ghz regulatory may vary between countries, and function will be ready in windows 11 or later.
usb.
Usb trasero:.
Total 8 ports.
2 x usb 3.2 gen 2 ports (1 x type-A + 1 x usb type-C®).
4 x usb 3.2 gen 1 ports (4 x type-A).
2 x usb 2.0 ports.
usb frontal:.
Total 6 ports.
1 x usb 3.2 gen 1 header supports additional 2 usb 3.2 gen 1 ports.
2 x usb 2.0 headers support additional 4 usb 2.0 ports.
audio.
Rog supremefx 7.1-Channel high definition audio codec s1220A.
- impedance sense for front and rear headphone outputs.
- jack-Detection, multi-Streaming, front panel jack-Retasking.
- high quality 120 db snr stereo playback output and 113 db snr recording input.
- supports up to 32-Bit/192Khz playback*.
audio features.
- supremefx shielding technology.
- dual op amplifiers.
- premium audio capacitors.
- audio cover.
.
*Due to limitations in hda bandwidth, 32-Bit/192 khz is not supported for 8-Channel audio.
puertos de e / s del panel posterior.
2 x usb 3.2 gen 2 ports (1 x type-A + 1 x usb type-C®).
4 x usb 3.2 gen 1 ports (4 x type-A).
2 x usb 2.0 ports.
1 x wi-Fi module.
1 x displayport.
1 x hdmi® port.
1 x intel® i225-V 2.5G ethernet.
1 x optical s/Pdif out.
5 x audio jacks.
1 x bios flashbacktm button.
conectores de e / s internos.
Fan and cooling related.
1 x 4-Pin aio_Pump header.
1 x 4-Pin cpu fan header.
1 x 4-Pin cpu_Opt fan header.
3 x 4-Pin chassis fan headers.
power related.
1 x 24-Pin main power connector.
1 x 8-Pin +12V power connector.
1 x 4-Pin +12V power connector.
storage related.
2 x m.2 slots (Key m).
6 x sata 6Gb/S ports.
usb ports.
1 x usb 3.2 gen 1 header supports additional 2 usb 3.2 gen 1 ports.
2 x usb 2.0 headers support additional 4 usb 2.0 ports.
miscellaneous.
1 x addressable gen 2 header.
2 x aura rgb headers.
1 x clear cmos header.
1 x front panel audio header (Aafp).
1 x 20-3 pin system panel header with chassis intrude function.
1 x thermal sensor header.
1 x thunderbolt header.
características especiales.
Asus q-Design.
- asus q-Dimm.
- asus q-Led (Dram [Yellow],Cpu [Red], vga [White], boot device [Yellow green).
- asus q-Slot.
Asus thermal solution.
- m.2 heatsink.
Aura sync.
- aura rgb headers.
- addressable gen 2 rgb headers.
asus ez diy.
- bios flashback button.
- bios flashback led.
- clear cmos header.
- procool.
- pre-Mounted i/O shield.
- safeslot.
Funciones de software.
Rog exclusive software.
- ramcache iii.
- rog cpu-Z.
- gamefirst vi.
- sonic studio iii + sonic studio virtual mixer.
- sonic radar iii.
- dts® sound unbound.
- overwolf.
- anti-Virus software.
asus exclusive software features.
Armoury crate.
- aida64 extreme (60 days free trial).
- aura creator.
- aura sync.
- two-Way ai noise cancelatio.
ai suite 3:.
- performance and power saving utility.
Epu.
Digi+ vrm.
Fan xpert 4.
Turbov evo.
- ez update.
winrar.
Daemon tools.
Norton anti-Virus software (Free trial version).
uefi bios.
Asus ez diy.
- asus crashfree bios 3.
- asus ez flash 3.
- asus uefi bios ez mode.
bios.
256 mb flash rom, uefi ami bios.
manejabilidad.
Wol by pme, pxe.
accesorios.
Cables.
1 x addressable rgb extension cable.
4 x sata 6Gb/S cables.
miscellaneous.
1 x asus wi-Fi moving antennas.
1 x cable ties pack.
1 x m.2 rubber package.
1 x m.2 ssd screw package.
1 x rog key chain.
1 x rog strix stickers.
1 x rog strix thank you card.
installation media.
1 x support dvd.
documentation.
1 x user manual.
sistema operativo.
Windows® 11 64-Bit, windows® 10 64-Bit.
factor de forma.
Atx.
30.5Cm x 24.4Cm
GARANTÍA: 3 AÑOS
- sysmx.com.mx -
MB ASUS B550 AMD S-AM4 5A GEN/4X DDR4 2666/DP/HDMI/M.2/6X USB 3.2/USB-C/WIFI 6E/BLUETOOTH/ATX/GAMA MEDIA/GAMER/RGB, - Garantía: 3 AÑOS -
- Fabricante: ASUS OEM
- Código de Fabricante: ROG STRIX B550-F GAMING WIFI II
- Disponibilidad: En Stock
-
$4,845.68
