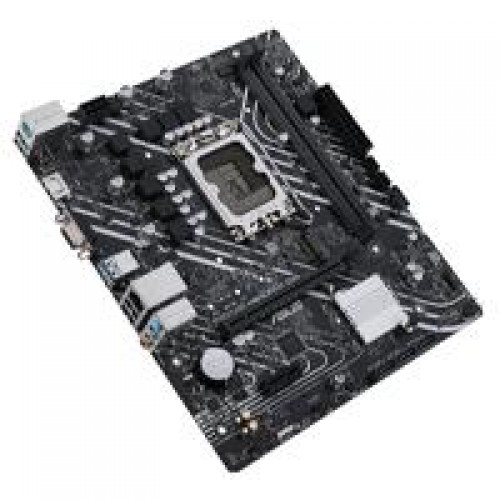

Tarjeta madre intel® h610 (Lga 1700) mic-Atx con ddr4, pcie 4.0, puerto m.2, realtek 1 gb ethernet, hdmi®, d-Sub, puertos usb 3.2 gen 1, sata 6 gbps, puerto com y puerto rgb.

Socket intel® lga 1700: listo para procesadores intel® de 12A gen.

refrigeración completa: disipador de calor pch y fan xpert.

conectividad ultrarrápida: puerto m.2 de 32 gbps, ethernet realtek de 1Gb y usb 3.2 gen 1.

5X protection iii: múltiples protecciones de hardware para una protección completa.

Cpu.

Intel® socket lga1700 for 12Th gen intel® core™, pentium® gold and celeron® processors*.

Supports intel® turbo boost technology 2.0 and intel® turbo boost max technology 3.0**.

.

*Refer to www.Asus.Com for cpu support list.

*.

*Intel® turbo boost max technology 3.0 support depends on the cpu types.

chipset.

Intel® h610 chipset.

memory.

2 x dimm, max.

64Gb, ddr4 3200/3000/2933/2800/2666/2400/2133 non-Ecc, un-Buffered memory*.

Dual channel memory architecture.

Supports intel® extreme memory profile (Xmp).

*Actual memory data rate depends on the cpu types and dram modules, for more information refer to www.Asus.Com for memory support list.

graphics.

1 x d-Sub port.

1 x hdmi® port**.

*Graphics specifications may vary between cpu types.

Please refer to www.Intel.Com for any updates.

*.

*Supports 4K@60Hz as specified in hdmi 2.1.

expansion slots.

Intel® 12Th gen processors.

1 x pcie 4.0 x16 slot.

Intel® h610 chipset.

1 x pcie 3.0 x1 slot.

storage.

Total supports 1 x m.2 slot and 4 x sata 6Gb/S ports.

Intel® h610 chipset.

M.2 slot (Key m), type 2242/2260/2280 (Supports pcie 3.0 x4 and sata modes).

4 x sata 6Gb/S ports.

*The m.2 slot shares bandwidth with the sata6G_4 port.

When a device in sata mode is installed on the m.2 slot, the sata6G_4 port cannot be used.

ethernet.

1 x realtek 1Gb ethernet.

usb.

Rear usb (Total 6 ports).

2 x usb 3.2 gen 1 ports (2 x type-A).

4 x usb 2.0 ports (4 x type-A).

front usb (Total 4 ports).

1 x usb 3.2 gen 1 header supports additional 2 usb 3.2 gen 1 ports.

1 x usb 2.0 header supports additional 2 usb 2.0 ports.

audio.

Realtek 7.1 surround sound high definition audio codec*.

- supports: jack-Detection, multi-Streaming, front panel jack-Retasking.

- supports up to 24-Bit/192 khz playback.

audio features.

- audio shielding.

- dedicated audio pcb layers.

*A chassis with an hd audio module in the front panel is required to support 7.1 surround sound audio output.

back panel i/O ports.

2 x usb 3.2 gen 1 ports (2 x type-A).

4 x usb 2.0 ports (4 x type-A).

1 x d-Sub port.

1 x hdmi® port.

1 x realtek 1Gb ethernet port.

3 x audio jacks.

1 x ps/2 keyboard/Mouse combo port.

Internal i/O connectors.

Fan and cooling related.

1 x 4-Pin cpu fan header.

1 x 4-Pin chassis fan header.

power related.

1 x 24-Pin main power connector.

1 x 8-Pin +12V power connector.

storage related.

1 x m.2 slot (Key m).

4 x sata 6Gb/S ports.

usb.

1 x usb 3.2 gen 1 header supports additional 2 usb 3.2 gen 1 ports.

1 x usb 2.0 header supports additional 2 usb 2.0 ports.

miscellaneous.

1 x rgb header.

1 x clear cmos header.

1 x com port header.

1 x front panel audio header (Aafp).

1 x s/Pdif out header.

1 x speaker header.

1 x spi tpm header (14-1Pin).

1 x 10-1 pin system panel header.

special features.

Asus 5X protection iii.

- digi+ vrm.

- languard.

- overvoltage protection.

- safeslot core.

- stainless-Steel back i/O.

asus q-Design.

- q-Dimm.

- q-Slot.

Asus thermal solution.

- aluminum heatsink design.

Asus lighting control.

- rgb header.

Software features.

Asus exclusive software.

armoury crate.

Ai suite 3.

- performance and power saving utility.

Turbov evo.

Epu.

Digi+ vrm.

Fan xpert.

asus cpu-Z.

Norton anti-Virus software (Free trial version).

winrar.

Uefi bios.

Asus ez diy.

- asus crashfree bios 3.

- asus ez flash 3.

- asus uefi bios ez mode.

bios.

128 mb flash rom, uefi ami bios.

manageability.

Wol by pme, pxe.

accessories.

Cables.

2 x sata 6Gb/S cables.

Miscellaneous.

1 x i/O shield.

1 x m.2 anchor.

Installation media.

1 x support dvd.

Documentation.

1 x user guide.

Operating system.

Windows® 11 64-Bit, windows® 10 64-Bit.

form factor.

Matx form factor.

9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

GARANTÍA: 3 AÑOS

- sysmx.com.mx -

Escribir un comentario

Nota: El Código HTML no será traducido.
    Malo           Bueno
Captcha

MB ASUS H610 INTEL S-1700 12A GEN/2X DDR4 2666/HDMI/D-SUB/M.2/2X USB3.2/MICRO ATX/GAMA BASICA, - Garantía: 3 AÑOS -

  • Fabricante: ASUS OEM
  • Código de Fabricante: PRIME H610M-K D4
  • Disponibilidad: En Stock
  • $1,902.90
