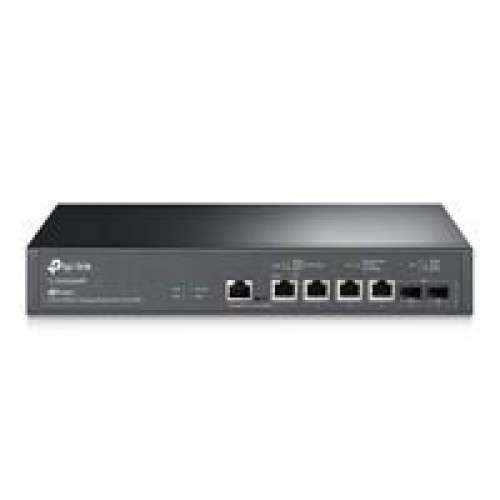

Conexión full 10G lightning-Fast: ofrece conectividad de alto ancho de banda con 4 puertos rj45 de 10 gbps ultrarrápidos y 2 ranuras sfp+ de 10 gbps.

salida poe++ con presupuesto de energía de 200 w†: cuatro puertos 802.3Af/At/Bt poe++ 10G con salida poe de hasta 60 w en cada puerto lo hacen ideal para la implementación de omada wifi 6 y wifi 6E ap.‡.

abundantes funciones l2 y l2+: admite una línea completa de funciones l2 y l2+, incluido el enrutamiento estático, qos de nivel empresarial e igmp snooping.

estrategias de seguridad sólidas: admite una línea completa de funciones l2 y l2+, que incluyen enrutamiento estático, qos de nivel empresarial e igmp snooping.

enrutamiento estático: ayuda a enrutar el tráfico interno para un uso más eficiente de los recursos de la red.

gestión centralizada de la nube: se integra en omada sdn para el acceso a la nube y la gestión remota.

administración independiente: web, cli (Puerto de consola, telnet, ssh), snmp, rmon y dual image brindan potentes capacidades de administración.

Características de hardware.

interface • 4× 100/1000/2500/5000/10000 mbps rj45 ports.

• 2× 10G sfp+ slots.

• 1× rj45 console port.

• 1× micro-Usb console port.

Cantidad de ventiladores 2.

Fuente de alimentación 100-240 v ac~50/60 hz.

Puertos poe (Rj45) • standard: 802.3Bt/At/Af compliant.

• poe+ ports: 4 ports, up to 60 w per port.

• power budget: 200 w.

Dimensiones (W x d x h) 11.6 × 7.1 × 1.7 in (294× 180 × 44 mm).

Montaje • rack mountable.

• desktop.

Consumo máximo de energía • 27.29 w (110V/60Hz) (No pd connected).

• 244.90 w (110V/60Hz) (With 200 w pd connected).

Disipación máxima de calor • 93.12 btu/H (110 v/60 hz) (No pd connected).

• 835.67 btu/H (110 v/60 hz) (With 200 w pd connected).

Rendimiento.

capacidad de switcheo 120 gbps.

Tasa de reenvío de paquetes 89.28 mpps.

Tabla de mac address 32 k.

Jumbo frame 9 kb.

Características de software.

calidad de servicio • 8 priority queues.

• 802.1P cos/Dscp priority.

• queue scheduling.

- sp (Strict priority).

- wrr (Weighted round robin).

- sp+Wrr.

• bandwidth control.

- port/Flow based rating limiting.

• smoother performance.

• action for flows.

- mirror (To supported interface).

- redirect (To supported interface).

- rate limit.

- qos remark.

Características de l2 y l2 + • link aggregation.

- static link aggregation.

- 802.3Ad lacp.

- up to 8 aggregation groups, containing 8 ports per group.

• spanning tree protocol.

- 802.1D stp.

- 802.1W rstp.

- 802.1S mstp.

- stp security: tc protect, bpdu filter, root protect.

• loopback detection.

- port based.

- vlan based.

• flow control.

- 802.3X flow control.

- hol blocking prevention.

• mirroring.

- port mirroring.

- cpu mirroring.

- one-To-One.

- many-To-One.

- tx/Rx/Both.

L2 multicast • igmp snooping.

- igmp v1/V2/V3 snooping.

- fast leave.

- igmp snooping querier.

- igmp authentication.

• igmp authentication.

• mld snooping.

- mld v1/V2 snooping.

- fast leave.

- mld snooping querier.

- static group config.

- limited ip multicast.

• mvr.

• multicast filtering: 256 profiles and 16 entries per profile.

Vlan • vlan group.

- max 4K vlan groups.

• 802.1Q tagged vlan.

• mac vlan: 10 entries.

• protocol vlan: protocol template 16, protocol vlan 16.

• private vlan.

• gvrp.

• vlan vpn (Qinq).

- port-Based qinq.

- selective qinq.

• voice vlan.

Lista de control de acceso • time-Based acl.

• mac acl.

- source mac.

- destination mac.

- vlan id.

- user priority.

- ether type.

• ip acl.

-Source ip.

- destination ip.

- fragment.

- ip protocol.

- tcp flag.

- tcp/Udp port.

- dscp/Ip tos.

- user priority.

• combined acl.

• packet content acl.

• ipv6 acl.

• policy.

- mirroring.

- redirect.

- rate limit.

- qos remark.

• acl apply to port/Vlan.

Seguridad • ip-Mac-Port binding.

- 512 entries.

- dhcp snooping.

- arp inspection.

- ipv4 source guard: 100 entries.

• ipv6-Mac-Port binding.

- 512 entries.

- dhcpv6 snooping.

- nd detection.

- ipv6 source guard: 100 entries.

• dos defend.

• static/Dynamic port security.

- up to 64 mac addresses per port.

• broadcast/Multicast/Unicast storm control.

- kbps/Ratio control mode.

• 802.1X.

- port base authentication.

- mac base authentication.

- vlan assignment.

- mab.

- guest vlan.

- support radius authentication andaccountability.

• aaa (Including tacacs+).

• port isolation.

• secure web management through https with sslv3/Tls 1.2.

• secure command line interface (Cli) management with sshv1/Sshv2.

• ip/Port/Mac based access control.

Ipv6 • ipv6 dual ipv4/Ipv6.

• multicast listener discovery (Mld) snooping.

• ipv6 acl.

• ipv6 interface.

• static ipv6 routing.

• ipv6 neighbor discovery (Nd).

• path maximum transmission unit (Mtu) discovery.

• internet control message protocol (Icmp) version 6.

• tcpv6/Udpv6.

• ipv6 applications.

- dhcpv6 client.

- ping6.

- tracert6.

- telnet (V6).

- ipv6 snmp.

- ipv6 ssh.

- ipv6 ssl.

- http/Https.

- ipv6 tftp.

L3 features • 16 ipv4/Ipv6 interfaces.

• static routing.

- 48 static routes.

• static arp.

- 128 static entries.

• proxy arp.

• gratuitous arp.

• dhcp server.

• dhcp relay.

- dhcp interface relay.

- dhcp vlan relay.

• dhcp l2 relay.

Características avanzadas • automatic device discovery.

• batch configuration.

• batch firmware upgrading.

• intelligent network monitoring.

• abnormal event warnings.

• unified configuration.

• reboot schedule.

Mibs • mib ii (Rfc1213).

• interface mib (Rfc2233).

• ethernet interface mib (Rfc1643).

• bridge mib (Rfc1493).

• p/Q-Bridge mib (Rfc2674).

• rmon mib (Rfc2819).

• rmon2 mib (Rfc2021).

• radius accounting client mib (Rfc2620).

• radius authentication client mib (Rfc2618).

• remote ping, traceroute mib (Rfc2925).

• support tp-Link private mib.

Administración.

omada app yes.

Requiring the use of oc300, oc200, omada cloud-Based controller, or omada software controller.

centralized management • omada cloud-Based controller.

• omada hardware controller (Oc300).

• omada hardware controller (Oc200).

• omada software controller.

Cloud access yes.

Requiring the use of oc300, oc200, omada cloud-Based controller, or omada software controller.

zero-Touch provisioning yes.

Requiring the use of omada cloud-Based controller.

management features • web-Based gui.

• command line interface (Cli) through the console port, telnet.

• snmp v1/V2C/V3.

- trap/Inform.

- rmon (1,2,3,9 groups).

• sdm template.

• dhcp/Bootp client.

• 802.1Ab lldp/Lldp-Med.

• dhcp autoinstall.

• dual image, dual configuration.

• cpu monitoring.

• cable diagnostics.

• eee.

• password recovery.

• sntp.

• system log.

Otros.

certificacion ce, fcc, rohs.

Contenidos del paquete •Tl-Sx3206Hpp switch.

• power cord.

• quick installation guide.

• rackmount kit.

• rubber feet.

Requisitos del sistema microsoft® windows® 98Se, nt, 2000, xp, vista™ or windows 7/8/10/11, mac® os, netware®, unix® or linux.

ambiente • operating temperature: 0–50 and #8451.

(32–122 and #8457;);.

• storage temperature: -40–70 and #8451.

(-40–158 and #8457;).

• operating humidity: 10–90% rh non-Condensing.

• storage humidity: 5–90% rh non-Condensing

GARANTÍA: 5 AÑOS
