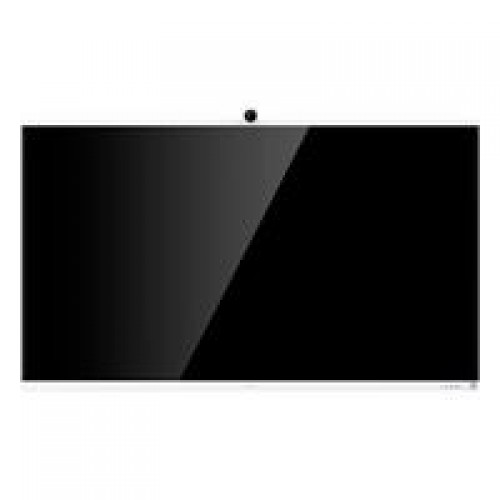

Basada en la plataforma de hardware de ultima generacion con alta potencia informatica y harmonyos, la serie huawei ideahub s2, ofrece bring your own meeting byom, reuniones inmersivas en hd, wi-Fi 6 para proyeccion directa y latencia de escritura ultrabaja, adaptandose facilmente a las principales aplicaciones de reuniones en la nube.

Es una solucion perfecta para la colaboracion y la comunicacion sin limites que se adapta a cualquier sala, como la sala de reuniones habitual, el despacho ejecutivo y la zona de oficina abierta.

-Se utiliza con camara de video 4K de calidad profesional para obtener imagenes nitidas incluso en reuniones largas.

-Reunion inteligente en todos los escenarios: reuniones con video 4K completo.

Adaptacion a las reuniones en la nube principales con una experiencia de reunion de 1080P, transferencia perfecta de sus reuniones.

-Byom: proyeccion p2P en un toque sin necesidad de configurar la red.

Pizarra inteligente, como escribir en papel.

Multi-Window y app multiplier para una interaccion facil de usar en modo horizontal.

-Amplio ecosistema de aplicaciones: gran cantidad de aplicaciones ofimaticas adaptadas y descargables con un solo toque en la pantalla.

Sdk abiertos y estandar para una rapida integracion con las aplicaciones ofimaticas de la empresa.

Cpu 8 cores.

Memory 8 gb.

Storage space 64 gb.

Ai computing power 4T.

Operating system harmonyos is supported.

The optional ops supports windows 10.

screen display.

Backlight type d-Led.

Aspect ratio 16:09.

Resolution 3840 x 2160.

Display area 65-Inch model: 1428.48 mm x 803.52 mm.

75-Inch model: 1649.66 mm x 927.94 mm.

86-Inch model: 1895.04 mm x 1065.96 mm.

pixel distance.

65-Inch model: 372.0 and 924;M x 372.0 and 924;M.

75-Inch model: 429.6 and 924;M x 429.6 and 924;M.

86-Inch model: 493.5 and 924;M x 493.5 and 924;M.

refresh rate 60 hz.

Response time 8 ms.

Brightness typical value 350 nits.

Screen brightness uniformity aprox 70 percent.

Contrast 1200:01:00.

Viewing angle aprox 178 degree.

Color depth 10 bits 8 bits plus frc.

Hardware-Based anti-Blue light supported.

Screen touch control.

Touch control precision±1 mm.

Maximum number of touch points20.

Touch control typeinfrared touch control.

Touch response time aprox 10 ms.

Automatic screen brightness adjustment supported.

Camera.

Lens type fixed focal length.

Sensor size 1/2.8.

Horizontal field of view 80°.

Aperture f1.8.

Video resolution 4K30 3840 x 2160.

Zoom 2X digital.

Vertical angle of view 50°.

Lens cap for privacy protection supported.

Tv distortion 2 percent.

Shooting distance 0.5 m to infinity.

Ptz adjustment e-Ptz.

Automatic exposure ae supported.

Automatic white balance awb supported.

Local camera presets 30.

Built-In microphone.

Quantity 6.

Sampling frequency 48 khz.

Sampling bits 24 bits.

Sound pickup angle 180°.

Built-In speaker.

Quantity 2 x high-Frequency speaker full-Frequency speaker.

Total speaker power 2 x 20 w.

Sound output mode bottom speaker.

Stereo supported.

Maximum sound level 95 db spl 1 m.

Electricity supply requirements.

Rated operating voltage 100–240 v ac.

Operating frequency 50 hz/60 hz.

Maximum power consumption.

65-Inch model: 350 w.

75-Inch model: 420 w.

86-Inch model: 450 w.

typical power without ops.

Brightness of 300 nits.

65-Inch model 175 w.

75-Inch model: 180 w.

86-Inch model: 230 w.

standby power 0.5 w.

Environmental requirements in use.

Ambient temperature 0–40°C.

Relative humidity 10 to 95.

Operating altitude 5000 m.

Environmental requirements idle.

Ambient temperature –20°C to 60°C.

Relative humidity non-Condensing 5 to 95 percent.

Physical parameters of the entire system.

product dimensions.

65-Inch model: 947.5 mm x 1484.5 mm x 91.6 mm.

75-Inch model: 1071.9 mm x 1705.7 mm x 91.8 mm.

86-Inch model: 1212.0 mm x 1953.0 mm x 91.8 mm.

package dimensions.

65-Inch model: 1050 mm x 1650 mm x 220 mm.

75-Inch model: 1170 mm x 1900 mm x 220 mm.

86-Inch model: 1300 mm x 2090 mm x 250 mm.

net weight.

65-Inch model: 35.5 kg.

75-Inch model: 47.0 kg.

86-Inch model: 62.0 kg.

gross weight including the package.

65-Inch model: 43.0 kg.

75-Inch model: 57.0 kg.

86-Inch model: 73.5 kg.

optional floor stand.

Product dimensions 1525.0 mm x 1302.0 mm x 764.0 mm.

Package dimensions 180 mm x 1390 mm x 845 mm.

Net weight 19.5 kg.

Gross weight including the package 24.8 kg.

Optional wall-Mounted bracket.

Product dimensions 30 mm x 1170 mm x 210 mm.

Package dimensions 86 mm x 1270 mm x 300 mm.

Net weight 3.6 kg.

Gross weight including the package 5.5 kg.

Mandatory stylus pen.

Quantity 2.

Wi-Fi.

Wi-Fi protocol 802.11 a/B/G/N/Ac/Ax.

Supported frequency band 2.4 ghz to 2.4835 ghz.

5 ghz to 5.85 ghz.

maximum transmit power 2.4 ghz to 2.4835 ghz: 20 dbm.

5 ghz to 5.85 ghz: 23 dbm.

voice tracking.

Distance 3 m.

Installation.

Installation modes floor stand-Mounted, wall-Mounted, or wall-Recessed.
