Huawei ideahub b3, basado en la plataforma de hardware de ultima generacion con alta potencia informatica y harmonyos, ofrece conferencias inteligentes en todos los escenarios, bring your own meeting (Byom) y un ecosistema con numerosas aplicaciones.
Es una solucion optima para la colaboración sin limites y las conferencias remotas que se adapta a cualquier sala, como la sala de reuniones habitual, la oficina ejecutiva y el area de oficina abierta.
- camara de video 4K de calidad profesional para obtener imagenes nitidas incluso en reuniones largas.
- compatible con auto-Framing y speaker tracking.
Dereverberacion basada en dnn y algoritmo aec, lo que mejora la experiencia de reunion inteligente inmersiva.
- reunion inteligente en todos los escenarios: adaptacion a las principales reuniones en la nube con una experiencia de reunion de 1080P.
Byom: transferencia sin problemas de sus reuniones.
- byom: proyección p2P en un toque sin necesidad de configurar la red.
Pizarra inteligente, como escribir en papel.
Multi-Window y app multiplier para una interaccion facil de usar.
- amplio ecosistema de aplicaciones: muchas de las principales aplicaciones ofimaticas adaptadas y que se pueden descargar con un solo toque en la pantalla.
Sdk abiertos y estandar para una rapida integracion con las aplicaciones ofimaticas de la empresa.
- proteccion chip-Device-Pipe-Cloud e2E y certificacion de seguridad de alto nivel cc eal5+.
Parameter name content.
System.
Cpu 8 cores.
Memory 8 gb.
Storage space 64 gb.
Ai computing power 4T+2T.
Operating system harmonyos is supported.
The optional ops supports windows 10.
screen display.
Backlight type d-Led.
Aspect ratio 16:9.
Resolution 3840 x 2160.
Display area.
65-Inch model: 1428.48 mm x 803.52 mm.
75-Inch model: 1649.66 mm x 927.94 mm.
86-Inch model: 1895.04 mm x 1065.96 mm.
Pixel distance.
65-Inch model: 372.0 and #956;M x 372.0 and #956;M.
75-Inch model: 429.6 and #956;M x 429.6 and #956;M.
86-Inch model: 493.5 and #956;M x 493.5 and #956;M.
Refresh rate 60 hz.
Response time 8 ms.
Brightness (Typical value) 350 nits.
Screen brightness uniformity and #8805.
70%.
Contrast 1200:1.
Viewing angle and #8805.
178°.
Color depth 10 bits (8 bits + frc).
Hardware-Based anti-Blue light supported.
Glass surface treatment anti-Glare.
Screen lamination zero-Gap bonding.
Glass surface hardness and #8805.
7H.
Screen touch control.
Touch control precision ±1 mm.
Maximum number of touch points 20.
Touch control type infrared touch control.
Touch response time and #8804.
10 ms.
Automatic screen brightness adjustment supported.
Camera.
Lens type fixed focal length.
Sensor size 1/2.8.
Horizontal field of view 80°.
Aperture f1.8.
Video resolution 4K30 (3840 x 2160).
Zoom 2X digital.
Vertical angle of view 50°.
Tv distortion 2%.
Shooting distance 0.5 m to infinity.
Ptz adjustment e-Ptz.
Automatic exposure (Ae) supported.
Automatic white balance (Awb) supported.
Local camera presets 30.
Built-In microphone.
Quantity 6.
Sampling frequency 48 khz.
Sampling bits 24 bits.
Sound pickup angle 180°.
Built-In speaker.
Quantity 2 x (High-Frequency speaker + full-Frequency speaker).
Total speaker power 2 x 15 w.
Sound output mode front tweeters and bottom full-Frequency speakers.
Frequency response range 100 hz to 20 khz.
Stereo supported.
Maximum sound level 95 db spl@1 m.
Electricity supply requirements.
Rated operating voltage 100240 v ac.
Operating frequency 50 hz/60 hz.
Maximum power consumption.
65-Inch model: 350 w.
75-Inch model: 420 w.
86-Inch model: 450 w.
Typical power (Without ops.
Brightness of 300 nits).
65-Inch model: 141 w.
75-Inch model: 177 w.
86-Inch model: 208 w.
Standby power 0.5 w.
Environmental requirements (In use).
Ambient temperature 0°C to +40°C.
Relative humidity 10% to 95%.
Operating altitude and #8804.
5000 m.
Environmental requirements (Idle).
Ambient temperature 20ºc to +60ºc.
Relative humidity (Non-Condensing) 5% to 95%.
Physical parameters of the entire system.
Product dimensions.
65-Inch model: 916.1 mm x 1484.5 mm x 91.6 mm.
75-Inch model: 1040.5 mm x 1705.7 mm x 91.8 mm.
86-Inch model: 1180.6 mm x 1953.0 mm x 91.8 mm.
Package dimensions.
65-Inch model: 1050 mm x 1650 mm x 220 mm.
75-Inch model: 1170 mm x 1900 mm x 220 mm.
86-Inch model: 1300 mm x 2090 mm x 250 mm.
Net weight.
65-Inch model: 35.5 kg.
75-Inch model: 47.8 kg.
86-Inch model: 63.0 kg.
Gross weight (Including the package).
65-Inch model: 43.0 kg.
75-Inch model: 57.8 kg.
86-Inch model: 74.5 kg.
(Optional) floor stand.
Product dimensions 1525.0 mm x 1302.0 mm x 764.0 mm.
Package dimensions 180 mm x 1390 mm x 845 mm.
Net weight 19.5 kg.
Gross weight (Including the package) 24.8 kg.
(Optional) wall-Mounted bracket.
Product dimensions 20 mm x 1100 mm x 200 mm.
Package dimensions 55 mm x 1260 mm x 345 mm.
Net weight 4.3 kg.
Gross weight (Including the package) 5.3 kg.
(Mandatory) stylus pen.
Quantity 2.
Wi-Fi.
Wi-Fi protocol 802.11 a/B/G/N/Ac/Ax.
Supported frequency band.
2.4 ghz to 2.4835 ghz.
5 ghz to 5.85 ghz.
Maximum transmit power.
2.4 ghz to 2.4835 ghz: 20 dbm.
5 ghz to 5.85 ghz: 23 dbm.
Voice tracking.
Distance 3 m.
Installation.
Installation modes floor-Mounted, wall-Mounted, or wall-Recessed.
GARANTÍA: sG
- sysmx.com.mx -

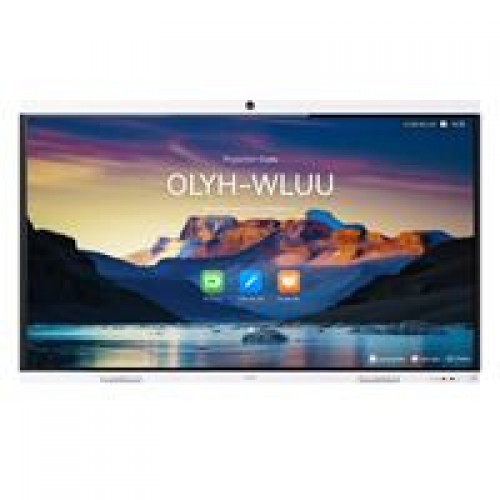

PANTALLA INTERACTIVA DE COLABORACION INTELIGENTE HUAWEI IDEAHUB B3 DE 75 PULGADAS, IHB3-75SA, - Garantía: SG -
- Fabricante: HUAWEI
- Código de Fabricante: 55150938NS-GP,55150938
- Disponibilidad: En Stock
-
$64,385.98
