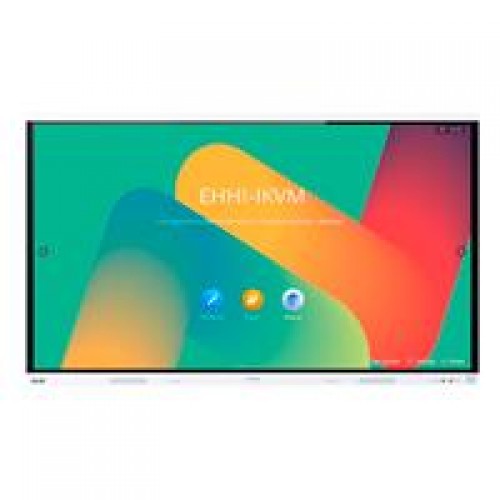

Huawei ideahub board 2 es un dispositivo de colaboracion educativa de proxima generacion equipado con una pantalla de luz suave 4K para proteger sus ojos.

Integra el ecosistema de hardware y software de ensenanza para proporcionar funciones como escritura fluida, proyeccion conveniente y conexion multimedia en aulas digitales, aprendizaje hibrido y escenarios de aula colaborativa.

El board 2 esta disponible en modelos de 65/75/86 pulgadas.

Item specifications.

System.

cpu 2 x a73 + 2 x a53.

Gpu mali-G51 mp4.

Ram 4 gb.

Flash 32 gb.

Operating system android 9.0 is supported.

The optional ops supports windows 10.

screen display.

aspect ratio 16:09.

Display resolution 3840 x 2160.

Refresh rate 60 hz.

Viewing angle and #8805.

178°.

Response time (Typical value) 8 ms.

Display area 65-Inch model: 1428.48 mm x 803.52 mm.

75-Inch model: 1649.66 mm x 927.94 mm.

86-Inch model: 1895.04 mm x 1065.96 mm.

Pixel distance 65-Inch model: 372.0 and #956;M x 372.0 and #956;M.

75-Inch model: 429.6 and #956;M x 429.6 and #956;M.

86-Inch model: 493.5 and #956;M x 493.5 and #956;M.

Color depth 10 bit (8 bit + frc).

Hardware-Based anti-Blue light supported.

Surface treatment of glass anti-Glare.

Contrast (Typical value) 1200:01:00.

Brightness (Typical value/Maximum value) 350 nits/400 nits.

Mean time to failure (Mttf) 30000 hours.

Screen brightness uniformity and #8805.

70%.

Backlight type d-Led.

Screen type infrared screen.

Panel technology ips.

Glass thickness and #8805.

3.2 mm.

Screen touch control.

maximum number of touch points 20.

Maximum identifiable objects 2 points, 3 mm.

Touch precision ±1 mm.

Maximum screen sensing range and #8804.

1.5 mm.

Touchscreen resolution 32767 (W) x 32767 (D).

Built-In speaker.

quantity 2 x (Tweeter + full-Frequency unit).

Total power of speaker 2 x 15 w.

Sound output mode front tweeters and bottom full-Frequency speakers.

Frequency response range 100 hz to 20 khz.

Stereo supported.

Maximum sound level 95 db spl@1 m.

Electricity supply requirements.

rated operating voltage 100–240 v ac, 50/60 hz.

Maximum power consumption 65-Inch model: 350 w.

75-Inch model: 420 w.

86-Inch model: 450 w.

Standby power 0.5 w.

Environmental requirements (In use).

ambient temperature 0 and #8451.

To 40 and #8451;.

Relative humidity 10%–95%.

Emc level class a.

Operating altitude 5000 m.

Operating (Hour/Day) 16-Jul.

Environmental requirements (Idle).

ambient temperature –20°C to +60°C.

Relative humidity (Non-Condensing) 5% to 95%.

Physical parameters of the entire system.

product dimensions 65-Inch model: 892.5 mm x 1484.5 mm x 91.6 mm.

75-Inch model: 1016.9 mm x 1705.7 mm x 91.8 mm.

86-Inch model: 1157.0 mm x 1953.0 mm x 91.8 mm.

Package dimensions 65-Inch model: 1050 mm x 1650 mm x 220 mm.

75-Inch model: 1170 mm x 1900 mm x 220 mm.

86-Inch model: 1300 mm x 2090 mm x 250 mm.

Net weight 65-Inch model: 35.2 kg.

75-Inch model: 46.7 kg.

86-Inch model: 61.6 kg.

Gross weight (Including the package) 65-Inch model: 42.7 kg.

75-Inch model: 56.7 kg.

86-Inch model: 73.1 kg.

(Optional) floor stand.

product dimensions 1525.0 mm x 1302.0 mm x 764.0 mm.

Package dimensions 180 mm x 1390 mm x 845 mm.

Net weight 19.5 kg.

Gross weight (Including the package) 24.8 kg.

(Optional) wall-Mounted bracket.

product dimensions 30 mm x 1170 mm x 210 mm.

Package dimensions 86 mm x 1270 mm x 300 mm.

Net weight 3.6 kg.

Gross weight (Including the package) 5.5 kg.

Stylus pen.

quantity 2.

Wi-Fi.

wi-Fi protocol 802.11 a/B/G/N/Ac.

Supported frequency band 2.4G to 2.4835G.

5G to 5.85G.

Maximum transmit power 2.4G: 20 dbm.

5G: 23 dbm.

Installation.

installation modes wall-Mounted and floor stand
