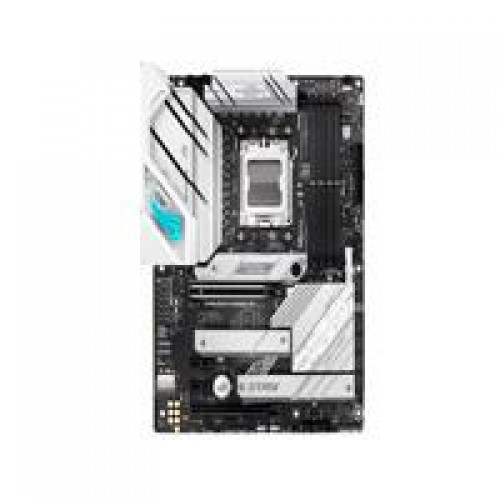

Tarjeta madre amd b650 am5 atx con 12 + 2 fases de poder, ddr5, ssd pcie® 5.0 nvme®, un pcie 4.0 x16 safeslot con q-Release, usb 3.2 gen 2X2 type-C® posterior, puerto de panel frontal usb 3.2 gen 2 type-C®, wifi 6E y iluminación aura sync rgb.

amd socket am5: listo para procesadores de escritorio amd ryzen™ serie 7000.

solución de alimentación robusta: 12 + 2 fases de poder con conectores de alimentación procool de 8 + 4 pines, chokes de aleación de alta calidad y condensadores duraderos para admitir procesadores multinúcleo.

diseño térmico optimizado: disipadores térmicos vrm masivos con canales de flujo de aire cortados estratégicamente y almohadillas térmicas de alta conductividad.

compatibilidad con m.2 de última generación: un puerto pcie® 5.0 m.2 y dos puertos pcie 4.0 m.2, todos con disipadores térmicos para maximizar el rendimiento.

/Li.

conectividad avanzada: un usb 3.2 gen 2X2 type-C® y ocho puertos usb traseros adicionales, usb 3.2 gen 2 type-C® para panel frontal, hdmi® 2.1, displayport™ 1.4 y un pcie 4.0 x16 safeslot.

redes de alto rendimiento: wifi 6E integrado (802.11Ax), bluetooth® 5.2 e intel® 2.5G ethernet con asus languard.

control inteligente: two-Way ai noise cancelation exclusivo de asus y ai networking.

audio envolvente para juegos: alc4080 con amplificador savitech sv3H712, junto con dts® sound unbound y sonic studio iii.

personalización inigualable: iluminación aura sync rgb exclusiva de asus, que incluye un puerto rgb y tres puertos gen 2 rgb direccionables.

diseño de fácil montaje: pcie® slot q-Release, m.2 q-Latch, placa de e/S premontada y botón biosflashback™.

software intuitivo: uefi bios fácil de usar, armory crate rgb con administrador de dispositivos y prueba aida64 extreme de 60 días incluida.

Cpu.

Amd socket am5 for amd ryzen™ 7000 series desktop processors*.

*Refer to www.Asus.Com for cpu support list.

chipset.

Amd b650.

memory.

4 x dimm, max.

128Gb, ddr5 6400+(Oc)/ 6200(Oc)/ 6000(Oc)/ 5800(Oc)/ 5600(Oc)/ 5400(Oc)/ 5200/ 5000/ 4800 ecc and non-Ecc, un-Buffered memory*.

Dual channel memory architecture.

Supports amd extended profiles for overclocking (Expo™).

Optimem ii.

*Supported memory types, data rate(Speed), and number of dram module vary depending on the cpu and memory configuration, for more information refer to www.Asus.Com for memory support list.

graphics.

1 x displayport*.

1 x hdmi® port**.

*Supports max.

8K@60Hz as specified in displayport 1.4.

**Supports 4K@60Hz as specified in hdmi 2.1.

expansion slots.

Amd ryzen™ 7000 series desktop processors.

1 x pcie 4.0 x16 slot.

Amd b650 chipset.

1 x pcie 4.0 x16 slot (Supports x4 mode)*.

2 x pcie 4.0/3.0 x1 slots.

*Pcie 4.0 x16 slot (Supports x4 mode) from amd b650 chipset shares bandwidth with m.2_3.

storage.

Total supports 3 x m.2 slots and 4 x sata 6Gb/S ports*.

Amd ryzen™ 7000 series desktop processors.

M.2_1 slot (Key m), type 2242/2260/2280(Supports pcie 5.0 x4 mode).

M.2_2 slot (Key m), type 2242/2260/2280 (Supports pcie 4.0 x4 mode).

Amd b650 chipset.

M.2_3 slot (Key m), type 2242/2260/2280/22110 (Supports pcie 4.0 x4 mode)**.

4 x sata 6Gb/S port.

*Amd raid xpert technology supports both nvme raid 0/1/10 and sata raid 0/1/10.

*.

*M.2_3 slot shares bandwidth with pcie 4.0 x16 slot (Supports x4 mode) when m.2_3 slot is operating in pcie mode, m.2_3 will be disabled.

ethernet.

1 x intel® 2.5Gb ethernet.

Asus languard.

wireless and bluetooth.

Wi-Fi 6E.

2X2 wi-Fi 6E (802.11 a/B/G/N/Ac/Ax).

Supports 2.4/5Ghz frequency band.

bluetooth v5.2.

*Wi-Fi 6E 6Ghz regulatory may vary between countries, and function will be.

Ready in windows 11 or later.

usb.

Rear usb (Total 9 ports).

1 x usb 3.2 gen 2X2 port (1 x usb type-C®).

4 x usb 3.2 gen 2 ports (3 x type-A + 1 x usb type-C®).

4 x usb 2.0 ports (4 x type-A).

front usb (Total 7 ports).

1 x usb 3.2 gen 2 connector (Supports usb type-C®).

1 x usb 3.2 gen 1 header supports additional 2 usb 3.2 gen 1 ports.

2 x usb 2.0 headers supports additional 4 usb 2.0 ports.

audio.

Rog supremefx 7.1 surround sound high definition audio codec alc4080.

- impedance sense for front and rear headphone outputs.

- supports: jack-Detection, multi-Streaming, front panel jack-Retasking.

- high quality 120 db snr stereo playback output and 113 db snr recording input.

- supports up to 32-Bit/384 khz playback.

Audio features.

- supremefx shielding technology.

- savitech sv3H712 amp.

- rear optical s/Pdif out port.

- premium audio capacitors.

- audio cover.

back panel i/O ports.

1 x usb 3.2 gen 2X2 port (1 x usb type-C®).

4 x usb 3.2 gen 2 ports (3 x type-A + 1 x usb type-C®).

4 x usb 2.0 ports (4 x type-A).

1 x displayport.

1 x hdmi® port.

1 x wi-Fi module.

1 x intel® 2.5Gb ethernet port.

5 x audio jacks.

1 x bios flashback™ button.

internal i/O connectors.

Fan and cooling related.

1 x 4-Pin cpu fan header.

1 x 4-Pin cpu opt fan header.

1 x 4-Pin aio pump header.

4 x 4-Pin chassis fan headers.

power related.

1 x 24-Pin main power connector.

1 x 8-Pin +12V power connector.

1 x 4-Pin +12V power connector.

storage related.

3 x m.2 slots (Key m).

4 x sata 6Gb/S ports.

usb.

1 x usb 3.2 gen 2 connector (Supports usb type-C®).

1 x usb 3.2 gen 1 header supports additional 2 usb 3.2 gen 1 ports.

2 x usb 2.0 headers supports additional 4 usb 2.0 ports.

miscellaneous.

3 x addressable gen 2 headers.

1 x aura rgb header.

1 x clear cmos header.

1 x cpu over voltage jumper.

1 x front panel audio header (Aafp).

1 x s/Pdif out header.

1 x 20-3 pin system panel header with chassis intrude function.

1 x thermal sensor header.

1 x thunderbolt™Header.

1 x com_Debugheader.

special features.

Extreme engine digi+.

- 5K black metallic capacitors.

asus q-Design.

- m.2 q-Latch.

- pcie slot q-Release.

- q-Led.

- q-Dimm.

- q-Slot.

Asus thermal solution.

- m.2 heatsink.

- vrm heatsink design.

asus ez diy.

- bios flashback™ button.

- bios flashback™ led.

- procool.

- pre-Mounted i/O shield.

- safeslot.

- safedimm.

aura sync.

- aura rgb header.

- addressable gen 2 headers.

Software features.

Rog exclusive software.

- gamefirst vi.

- rog cpu-Z.

- sonic studio iii + sonic studio virtual mixer + sonic suite compañon.

- sonic radar iii.

- dts® sound unbound.

- anti-Virus software.

Asus exclusive software.

Armoury crate.

- aida64 extreme (60 days free trial).

- aura creator.

- aura sync.

- fan xpert 4.

- power saving.

- two-Way ai noise cancellation.

Ai suite 3.

- tpu.

- digi+ vrm.

- turbo app.

- pc cleaner.

Myasus.

Winrar.

Uefi bios.

Asus ez diy.

- asus crashfree bios 3.

- asus ez flash 3.

- asus uefi bios ez mode.

Flexkey.

bios.

256 mb flash rom, uefi ami bios.

Manageability.

Wol by pme, pxe.

accessories.

Cables.

2 x sata 6Gb/S cables.

additional cooling kit.

1 x thermal pad for m.2.

Miscellaneous.

1 x asus wi-Fi moving antennas.

1 x cable ties pack.

1 x m.2 q-Latch package.

1 x rog key chain.

1 x rog strix stickers.

1 x rog strix thank you card.

2 x m.2 rubber packages.

documentation.

1 x user guide.

operating system.

Windows® 11 64-Bit.

form factor.

Atx form factor.

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

GARANTÍA: 3 AÑOS
